Two-zone discharge

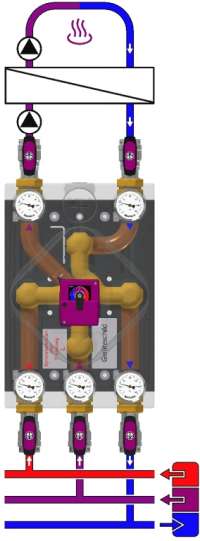

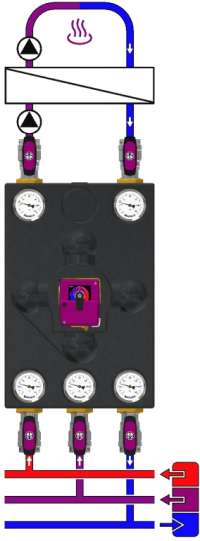

For highly efficient two-zone discharging of a buffer tank through a mixing circuit by means of highly efficient operation of a system separation via flow control
Specialist partner access required
Specialist partner access required
Specialist partner access required

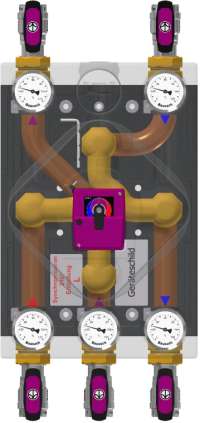

BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control TechnologyrendeMIX Multi-Port Mixing Manifold with 3/2-Way Tangential Mixing Valve DN25×G1½(a) Ms Cast Iron (red adapter), valve and cover Ms58For highly efficient two-zone discharge of a buffer tank via a mixing circuit through highly efficient operation of a system separation using flow controlActuator EMS 240, 230 V~ 50 Hz 3.5 VA 3-point signal, 5 Nm (240 h), 240°, 93sSingle-circuit mixer assembly with 3 connections to the heat source, Cu Ø35×1, DN32×G1½(a) flat, pipe spacing to the heat source 100 mm, pipe spacing to the mixing circuit 200 mm2 integrated gravity brakes/backflow preventers, Dp 10 mbarMixing circuit (NT) for system separation to be provided by the customer: Kvs = 9.7 • V'max[100 mbar] = 3.1 m³/h • Q'max[20 K] = 72 kW • Q'max[10 K] = 36 kW • Leak rate < 0.1%5 thermometers 0–120°C, Ø63 mm, Ms58 solder sleeves5 ball valve fittings, straight-through DN25s, PN20, G1½(i)×Rp1 flat-seal, stuffing box, stem with nylon T-handleInsulating molded shell, EPP 40 g/l, black, 300×450 mm, Quick-assembly kitWithout pump flangesAssembly does NOT include pump compensator – PAS L180 (Part No.: 001 338)Assembly does not include a pumpModel DN 25 – heavy-duty version, PN 10 bar, Tmax 120°CCAUTION: CANNOT BE USED WITHOUT SYSTEM ISOLATION!
Mixing circuit (NT) for system separation on site: Kvs = 9.7 • V'max[100mbar] = 3.1m³/h • Q'max[20K] = 72kW • Q'max[10K] = 36kW • Leakage rate < 0.1%
