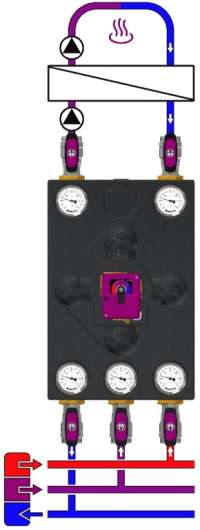

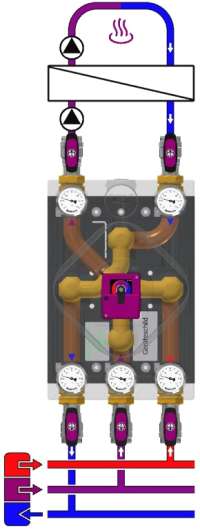

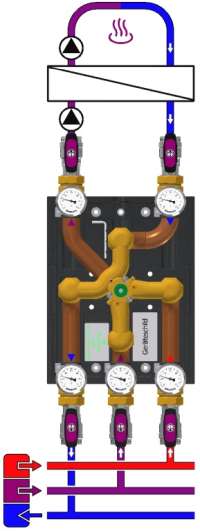

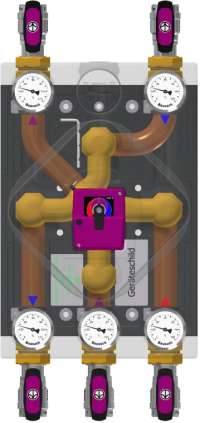

BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control TechnologyrendeMIX Multi-Port Mixing Manifold with 3/2-Way Tangential Mixing Valve DN25×G1½(a) MsGuss (green adapter), valve and cover Ms58For highly efficient two-zone discharge of a buffer tank via a mixing circuit through highly efficient operation of a system separation using flow controlActuator EMS 240, 230 V AC, 50 Hz, 3.5 VA, 3-point signal, 5 Nm (240 h), 240°, 93sSingle-circuit mixer assembly with 3 connections to the heat source, Cu Ø35×1, DN32×G1½(a) flat, pipe spacing to the heat source 100 mm, pipe spacing to the mixing circuit 200 mm2 integrated gravity brakes/backflow preventers, Dp 10 mbarMixing circuit (NT) for system separation to be provided by the customer: Kvs = 9.7 • V'max[100 mbar] = 3.1 m³/h • Q'max[20 K] = 72 kW • Q'max[10 K] = 36 kW • Leak rate < 0.1%5 thermometers 0–120°C, Ø63 mm, solder sleeves Ms585 ball valve fittings, straight-through DN25s, PN20, G1½(i)×Rp1 flat-seal, stuffing box, stem with nylon T-handleInsulating molded shell, EPP 40 g/l, black, 300×450 mm, Quick-assembly kitWithout pump flangesAssembly does NOT include pump compensator – PAS L180 (Part No.: 001 338)Assembly does not include a pumpModel DN 25 – heavy-duty version, PN 10 bar, Tmax 120°CCAUTION: CANNOT BE USED WITHOUT SYSTEM ISOLATION!
