BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control Technology

rendeMIX Multi-Port Mixing Manifold with 3/2-Way Tangential Mixing Valve DN25×G1½(a) Ms Cast Iron (red adapter), valve and cover Ms58

For highly efficient utilization of the return flow from an unmixed high-temperature circuit in a mixed low-temperature circuit via highly efficient operation of a system separation using flow control based on the differential pressure of the pump in the heat generator circuit (i.e., without an additional pump in the primary circuit of the system separation!) on a condensing boiler, a stratified storage tank, or a heat transfer station

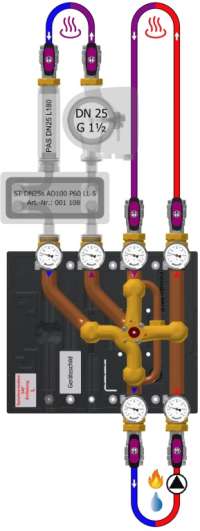

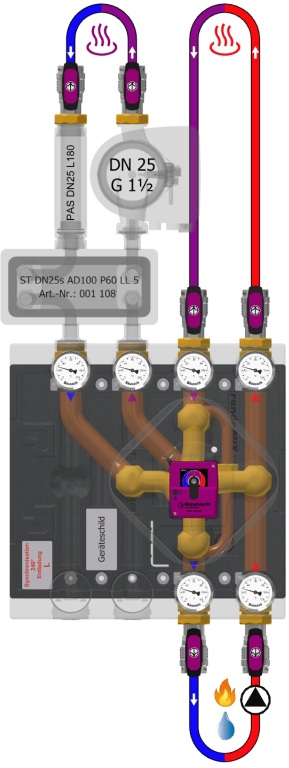

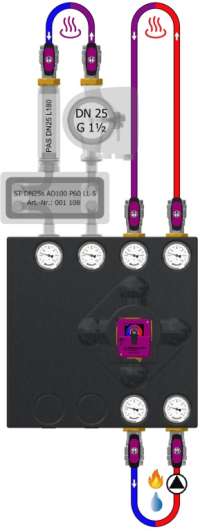

Actuator EMS 240, 230 V AC, 50 Hz, 3.5 VA, 3-point signal, 5 Nm (240 h), 240°, 93s<br/>Dual-circuit manifold assembly with 2 connections to the heat source and 4 connections to the heat sinks, Cu Ø35×1, DN32×G1½(a) flat, pipe spacing 100 mm<br/>1 integrated return differential pressure regulator, Dp 50–70 mbar<br/>Direct heating circuit (HT): Kvs = 9.2 &#x95; V'max[100 mbar] = 2.9 m³/h &#x95; Q'max[20 K] = 67 kW - Mixing circuit (NT) with ST DN25s: Kvs = 7.2 &#x95; V'max[100 mbar] = 2.3 m³/h &#x95; Q'max[10 K] = 27 kW &#x95; Leak rate < 0.1%<br/>6 thermometers 0–120°C, Ø63mm, solder sleeves Ms58<br/>6 ball valve fittings, straight-through DN25s, PN20, G1½(i)×Rp1 flat-seal, stuffing box, stem with nylon T-handle<br/>EPP insulation mold, 40 g/l, black, 450×450 mm, Quick-assembly kit<br/>Without pump flanges<br/>Assembly does NOT include a pump compensator – PAS L180 (Part No.: 001 338)<br/>Assembly does not include a pump<br/>Model DN 25 – heavy-duty version, PN 10 bar, Tmax 120°C<br/>CAUTION: CANNOT BE USED WITHOUT SYSTEM ISOLATION!
