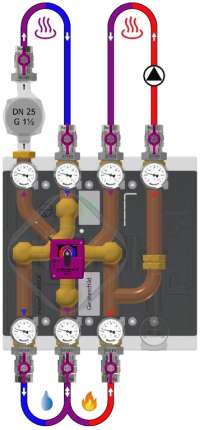

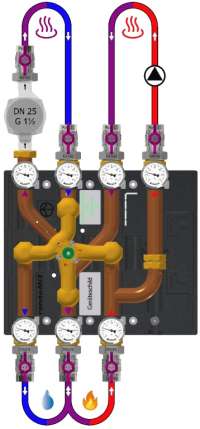

BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control Technology<br/>rendeMIX Multi-Port Mixing Manifold with 3/3-Way Tangential Mixing Valve DN25×G1½(a) Ms Cast Iron (green adapter), valve body and cover Ms58

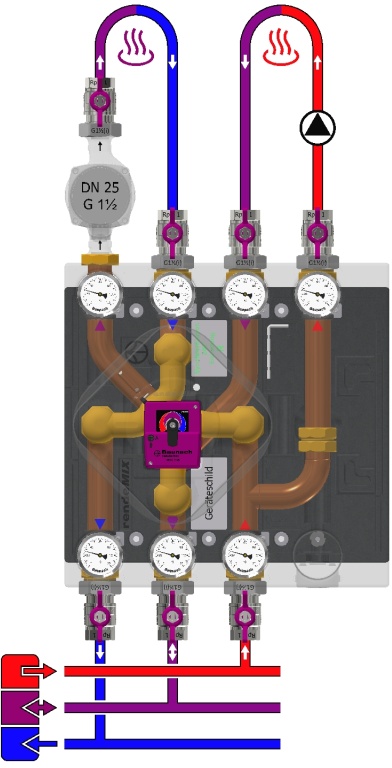

For highly efficient two-zone discharge of a buffer tank in a mixed low-temperature circuit while making highly efficient use of the return flow from an unmixed high-temperature circuit<br/>EMS 240 actuator, 230 V AC, 50 Hz, 3.5 VA, 3-point signal, 5 Nm (240 h), 240°, 93s<br/>Two-circuit manifold assembly with 3 connections to the heat generator (buffer tank or boiler with flue gas heat exchanger), Cu Ø35×1, pipe spacing 100 mm, DN32×G1½(a) flat<br/>2 integrated gravity brakes/backflow preventers, Dp 10 mbar<br/>Direct heating circuit (HT): Kvs = 6.2 &#x95; V'max[100 mbar] = 2 m³/h &#x95; Q'max[20 K] = 47 kW - Mixing circuit (NT): Kvs = 6.2 &#x95; V'max[100 mbar] = 2 m³/h &#x95; Q'max[10 K] = 23 kW &#x95; Leak rate < 0.1%<br/>7 thermometers 0–120°C, Ø63 mm, solder sleeves Ms58<br/>7 ball valve fittings, straight-through DN25, PN32, G1½(i)×Rp1 flat-seal, stuffing box, sealing hole, stem with aluminum wing handle

Insulating molded shell, EPP 40 g/l, black, 450×450 mm, Quick-installation kit<br/>With pump flange G1½(i) for DN25 pump on the mixing circuit supply line (5)<br/>Assembly does NOT include a pump compensator – PAS L180 (Part No.: 001 338)<br/>Assembly does not include a pump<br/>Model DN 25 – lightweight version, PN 10 bar, Tmax 120°C
