Data sheet

001934_DBL_2016-10-04-PN.pdf

GAEB

001934.D81

Tender text

Baunach article master data Version: 19.11.24

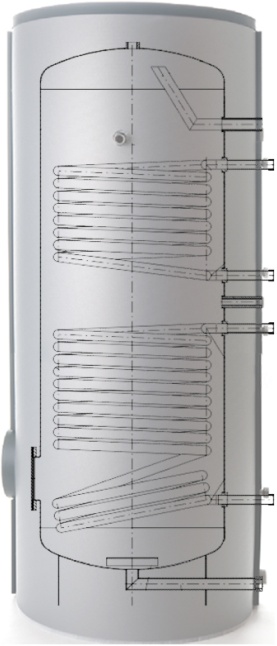

Stainless steel drinking water storage heater in upright design, energy efficiency class B

With two permanently installed smooth-tube heat exchangers For efficient, fast and hygienic heating of drinking water

Continuous output for DHW heating:

down: 40 kW (85/50°C) = 16,4 l/min (10/45°C) | 16 kW (55/45°C) = 6,6 l/min (10/45°C)

up: 20 kW (85/50°C) = 8,2 l/min (10/45°C) | 8 kW (55/45°C) = 3,3 l/min (10/45°C)

total: 60 kW (85/50°C) = 24.6 l/min (10/45°C) NL = 15 | 24 kW (55/45°C) = 9.8 l/min (10/45°C) NL = 7

Tank: capacity = 400 litres, h 1,640 mm, Ø 600 mm, m = 115 kg

PN 10 bar, Tmax 95°C, Material: Stainless steel 1.4571 (X6CrNiMoTi17-12-2), AISI 316Ti, V4A (chlorine-resistant up to 300 mg/l)

with 3 sensor terminal strips for sensor Ø 6-12 mm

Hygienic heating close to the floor, cold water inlet with baffle plate for flow damping

Heat exchanger: heating surface bottom: 1.8 m², top: 0.9 m²

PN 25bar, Tmax 160°C, material: stainless steel 1.4571 (X6CrNiMoTi17-12-2), AISI 316Ti, V4A (chlorine-resistant up to 300 mg/l)

Insulation: polyester fleece, 100 mm thick, flame retardant, outer jacket: polystyrene silver grey, cover: polystyrene black: H = 1,740 mm, Ø 800 mm

Thermometer: 0-120°C, cl. 1, Ø 100 mm with stainless steel immersion sleeve R½ (material 1.4571)

Connections: Cold/hot water G1(a), circulation G¾(i), vent Rp1, thermometer Rp½, heating coil G1½(a), hand hole 120/180 mm

Delivery: complete in foil packaging on pallet 80x80 cm
