Baunach article master data Version: 19.11.24

BAFA funding opportunity as part of heating system optimisation through hydraulic balancing and installation of separate control technology

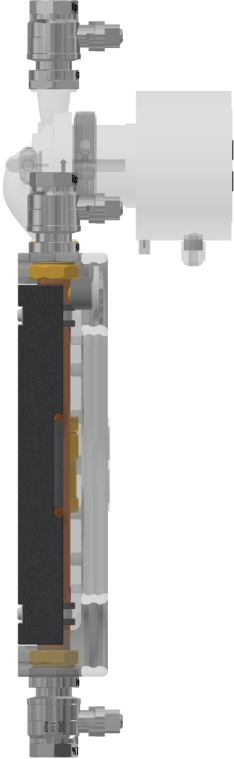

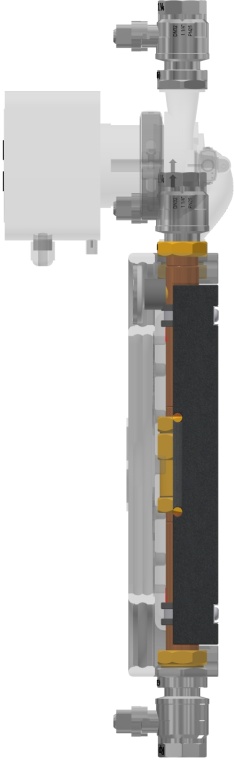

rendeMIX closed distributor assembly without integrated points

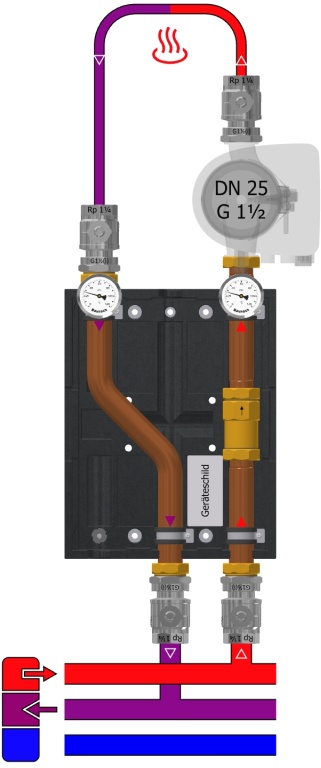

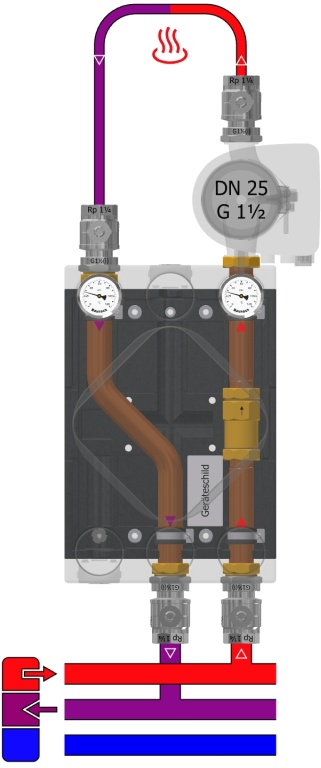

For connection of an unmixed high-temperature circuit in conjunction with a highly efficient rendeMIX heat distribution (two- or three-chamber manifold).

Without actuator

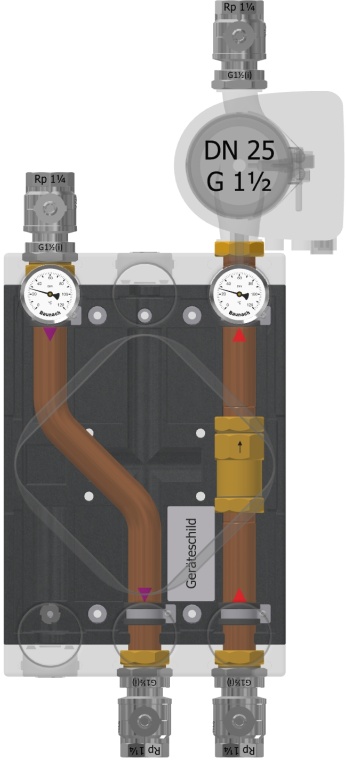

Unmixed manifold assembly with 2 connections to the heat source, CuØ35×1, pipe distance to the heat source (manifold) 100mm, pipe distance to the 100mm, DN32×G1½(a) flat.

1 integrated gravity brake/backflow preventer, Dp10mbar

Direct heating circuit (HT): Kvs = 22.6 - V'max[100mbar] = 7.2m³/h - Q'max[20K] = 167kW - Q'max[10K] = 84kW

2 Thermometers 0-120°C, Ø63mm, soldering sleeves Ms58

4 ball valve screw connections, DN32 passage, PN25, G1½(i)×Rp1¼ flat-sealing, stuffing box, spindle with square drive SW25

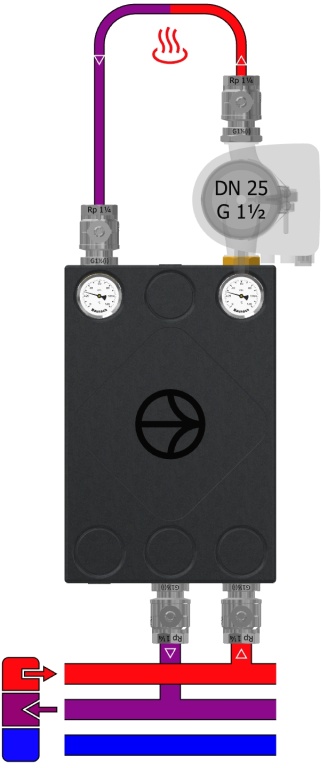

Insulating moulded tray EPP 40g/l, black, 300×450mm, quick assembly kit

With pump flange G1½(i) for pump DN25 on the unmixed heating circuit flow (3)

Assembly does NOT include pump compensator - PAS L180 (Part No.: 001 338)

Assembly does not contain a pump

Model DN 32 - manifold assembly for manifold connection from LEFT, PN 10bar, Tmax 120°C
