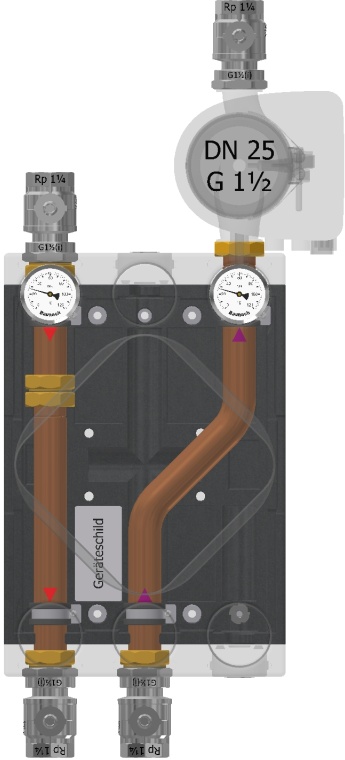

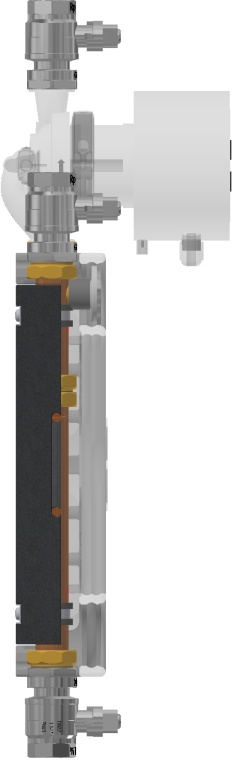

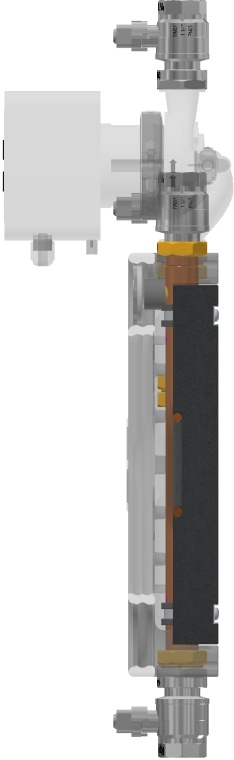

rendeMIX closed distributor assembly without integrated points

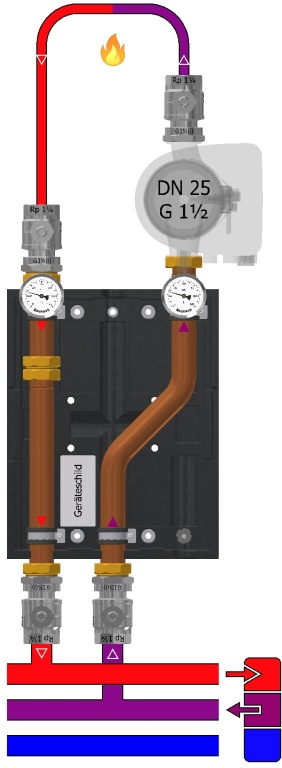

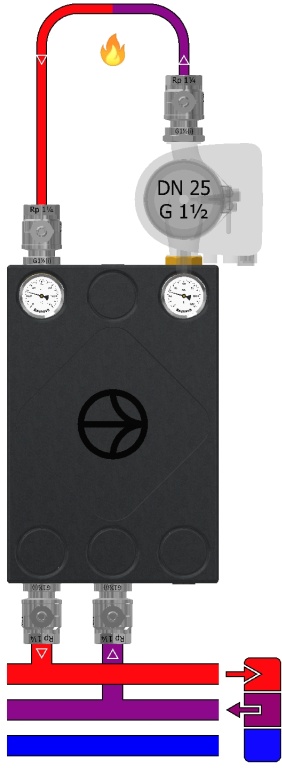

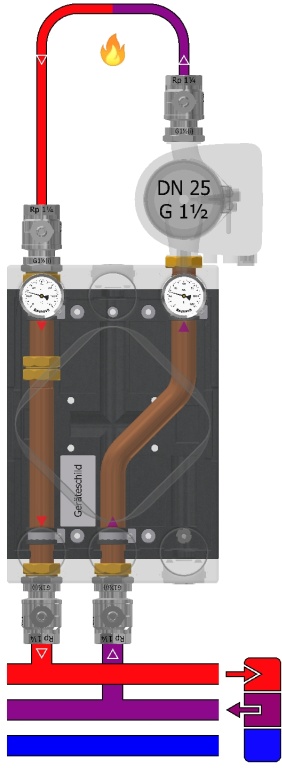

For connecting a heat generator in conjunction with a highly efficient rendeMIX heat distribution (two- or three-chamber manifold).

Without actuator

Unmixed charging assembly with 2 connections to the heat source, CuØ35×1, pipe distance to the heat source 100mm, pipe distance to the circuit 200mm, DN32×G1½(a) flat.

1 integrated gravity brake/backflow preventer, Dp10mbar

Generator circuit: Kvs = 19.9 - V'max[250mbar] = 10m³/h - Q'max[20K] = 233kW - Q'max[10K] = 116kW

2 Thermometers 0-120°C, Ø63mm, soldering sleeves Ms58

4 ball valve screw connections, DN32 passage, PN25, G1½(i)×Rp1¼ flat-sealing, stuffing box, spindle with square drive SW25

Insulating moulded tray EPP 40g/l, black, 300×450mm, quick assembly kit

With pump flange G1½(i) for pump DN25 at heat generator return (3)

Assembly does NOT include pump compensator - PAS L180 (Part No.: 001 338)

Assembly does not contain a pump

Model DN 25 - manifold assembly for manifold connection from RIGHT, PN 10bar, Tmax 120°C
