Tender text

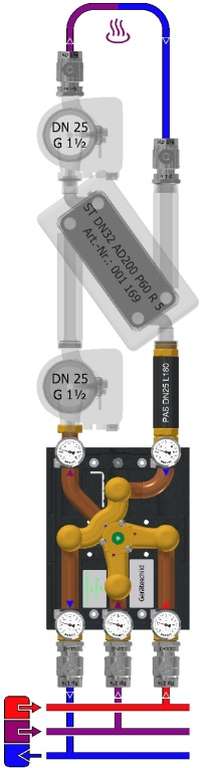

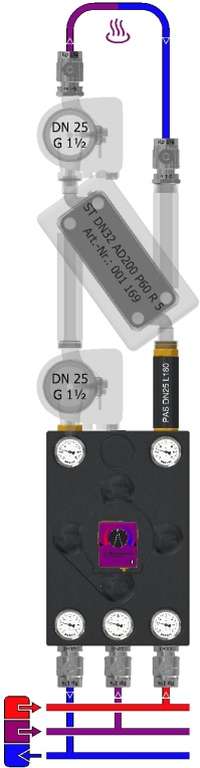

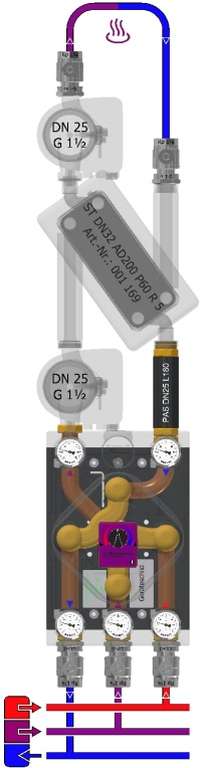

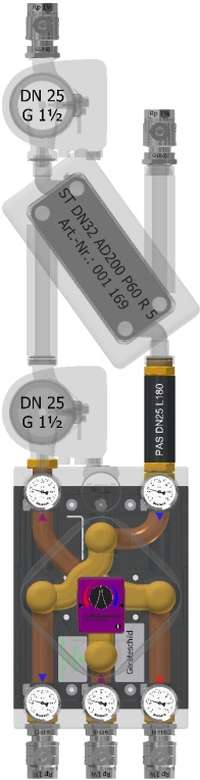

BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control Technology<br/>rendeMIX Multi-Port Mixing Manifold with 3/2-Way Tangential Mixing Valve DN32×G1½(a) MsGuss (green adapter), valve and cover Ms58<br/>For highly efficient two-zone discharge of a buffer tank via a mixing circuit through highly efficient operation of a system separation using flow control<br/>Actuator EMS 240, 230 V~ 50 Hz 3.5 VA 3-point signal, 5 Nm (240 h), 240°, 93s<br/>Single-circuit mixer assembly with 3 connections to the heat source, Cu Ø35×1, DN32×G1½(a) flat, pipe spacing to the heat source 100 mm, pipe spacing to the mixing circuit 200 mm<br/>2 integrated gravity brakes/backflow preventers, Dp 10 mbar<br/>Mixing circuit (NT) with VST DN32: Kvs = 13.1 &#x95; V'max[100 mbar] = 4.1 m³/h &#x95; Q'max[20 K] = 95 kW &#x95; Q'max[10 K] = 48 kW &#x95; Leak rate < 0.1%<br/>5 thermometers 0–120°C, Ø63mm, solder sleeves Ms58<br/>5 ball valve fittings, straight-through DN32, PN25, G1½(i)×Rp1¼ flat-seal, stuffing box, spindle with square drive SW25<br/>EPP insulation mold, 40 g/l, black, 300×450 mm, Quick-installation kit<br/>With pump flange G1½(i) for DN25 pump on the mixing circuit supply line (5)

Assembly includes ONE pump compensator—PAS L180—with G1½(a)×G1½(i) fittings for compensating a DN25 pump, length 180 mm, insulated (Part No.: 001 338)<br/>Assembly does not include a pump<br/>Model DN 32, PN 10 bar, Tmax 120°C<br/>CAUTION: CANNOT BE USED WITHOUT SYSTEM ISOLATION!

Performance data
