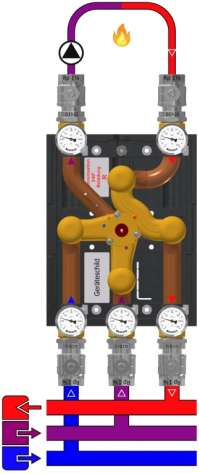

BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control Technology<br/>rendeMIX Multi-Port Mixing Manifold with 3/3-Way Tangential Mixing Valve DN32×G1½(a) Ms Cast Iron (red adapter), valve and cover Ms58<br/>For highly efficient two-zone charging of a buffer tank by a heat generator with return temperature increase as a mixing circuit (three-chamber manifold)

Actuator EMS 240, 230 V~ 50 Hz 3.5 VA 3-point signal, 5 Nm (240 h), 240°, 93s<br/>Return temperature boost unit with 3 connections to the buffer tank, Cu Ø35×1, pipe spacing to the buffer tank 100 mm, pipe spacing to the mixing circuit 200 mm, DN32×G1½(a) flat<br/>2 integrated gravity brakes/backflow preventers, Dp 10 mbar<br/>Generator circuit (HT-RLA): Kvs = 18.9 &#x95; V'max[250 mbar] = 9.5 m³/h &#x95; Q'max[20 K] = 221 kW &#x95; Q'max[10 K] = 110 kW &#x95; Leak rate < 0.1%<br/>5 thermometers 0–120°C, Ø63mm, solder sleeves Ms58<br/>5 ball valve fittings, straight-through DN32, PN25, G1½(i)×Rp1¼ flat-seal, stuffing box, stem with square drive SW25<br/>Insulating molded shell EPP 40 g/l, black, 300×450 mm, Quick-assembly kit<br/>Without pump flanges<br/>Assembly does NOT include pump compensator – PAS L180 (Part No.: 001 338)<br/>Assembly does not include a pump<br/>Model DN 32 – Manifold assembly for manifold connection from the LEFT, PN 10 bar, Tmax 120°C

Performance data
