Two-zone discharge
For highly efficient two-zone discharging of a buffer tank through a mixing circuit by means of highly efficient operation of a system separation via flow control
Specialist partner access required
Specialist partner access required
Specialist partner access required

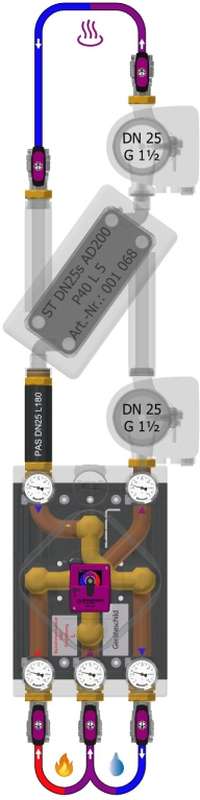

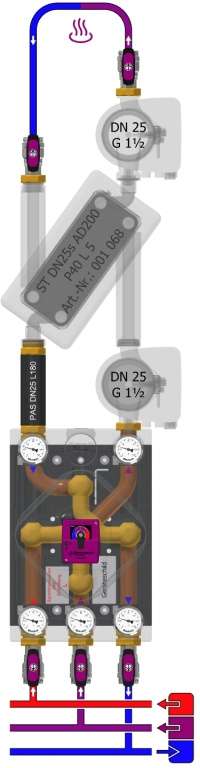

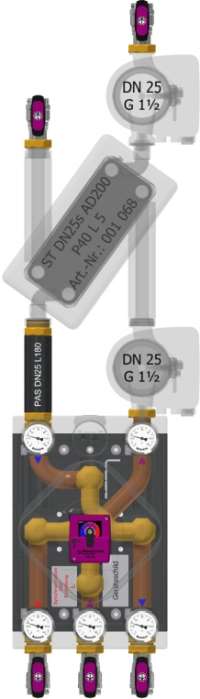

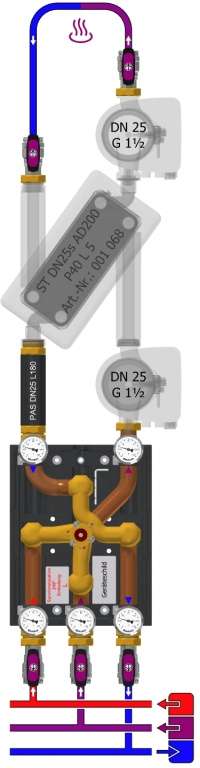

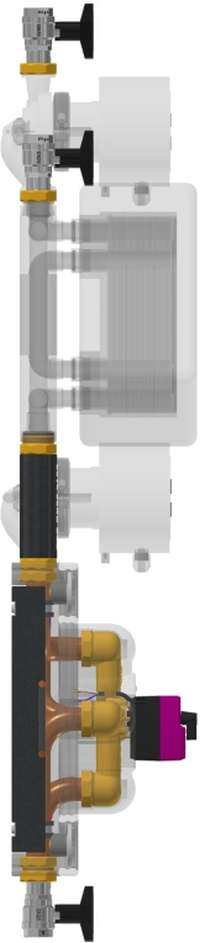

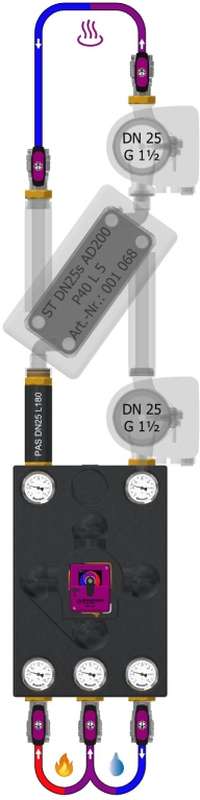

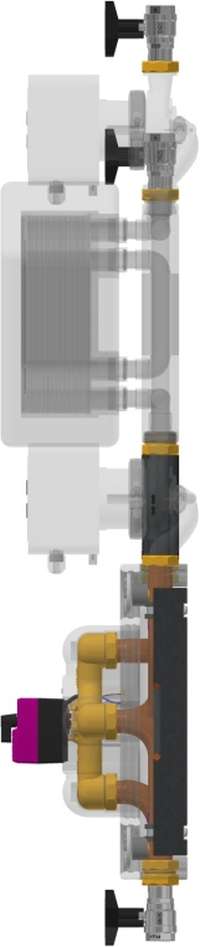

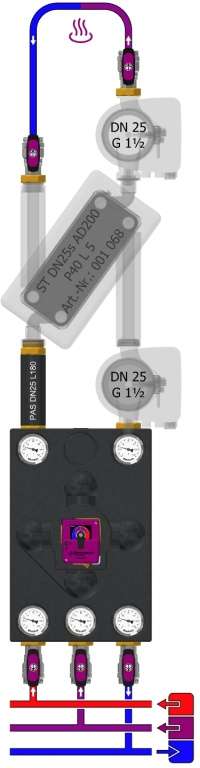

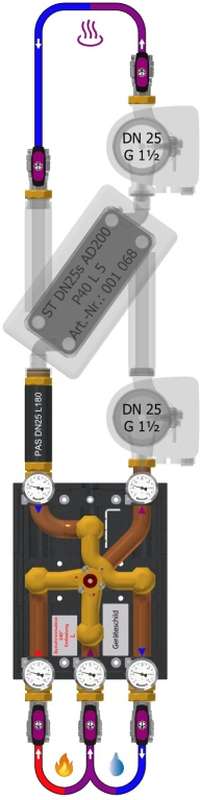

BAFA funding opportunity for heating system optimization through hydraulic balancing and the installation of separate control technologyrendeMIX multi-port mixing manifold with 3/2-way tangential mixing valve DN25×G1½(a) MsGuss (red adapter), valve and cover Ms58For highly efficient two-zone discharge of a buffer tank via a mixing circuit through highly efficient operation of a system separation using flow controlEMS 240 actuator, 230 V~ 50 Hz 3.5 VA 3-point signal, 5 Nm (240 h), 240°, 93sSingle-circuit mixer assembly with 3 connections to the heat source, Cu Ø35×1, DN32×G1½(a) flat, pipe spacing to the heat source 100 mm, pipe spacing to the mixing circuit 200 mm2 integrated gravity brakes/backflow preventers, Dp 10 mbarMixing circuit (NT) with ST DN25s: Kvs = 10.2 • V'max[100 mbar] = 3.2 m³/h • Q'max[20 K] = 74 kW • Q'max[10 K] = 37 kW • Leak rate < 0.1%5 thermometers 0–120°C, Ø63mm, solder sleeves Ms585 ball valve fittings, straight-through DN25s, PN20, G1½(i)×Rp1 flat-seal, stuffing box, stem with nylon T-handleEPP insulation mold, 40 g/l, black, 300×450 mm, Quick-installation kitWith pump flange G1½(i) for DN25 pump on the mixing circuit supply line (5)
Assembly includes ONE pump compensator—PAS L180—with G1½(a)×G1½(i) threaded connections for compensating a DN25 pump, length 180 mm, insulated (Part No.: 001 338)Assembly does not include a pumpModel DN 25 – heavy-duty version, PN 10 bar, Tmax 120°CCAUTION: CANNOT BE USED WITHOUT SYSTEM ISOLATION!
Mixing circuit (NT) with ST DN25s: Kvs = 10.2 • V'max[100mbar] = 3.2m³/h • Q'max[20K] = 74kW • Q'max[10K] = 37kW • Leakage rate < 0.1%
