BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control Technology

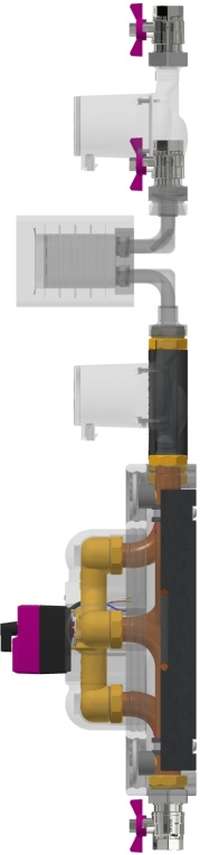

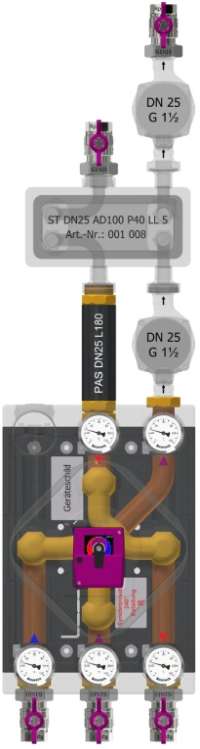

rendeMIX Multi-Port Mixing Manifold with 3/2-Way Tangential Mixing Valve DN25×G1½(a) Ms Cast Iron (red adapter), valve stem and cover Ms58

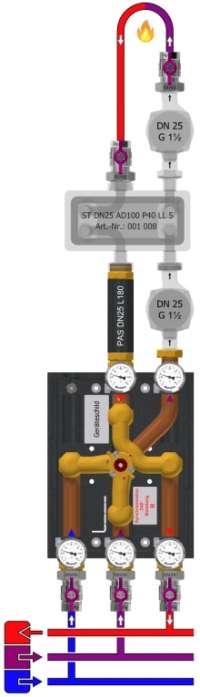

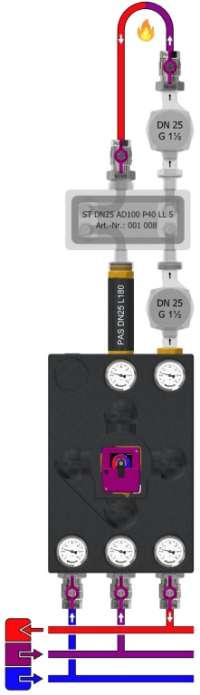

For highly efficient two-zone charging of a buffer tank by a heat generator with return temperature increase as a mixing circuit via highly efficient operation of a system separation using flow control<br/>Actuator EMS 240, 230 V AC, 50 Hz, 3.5 VA, 3-point signal, 5 Nm (240 h), 240°, 93s<br/>Return temperature boost mixer assembly with 2 connections to the heat generator and 3 connections to the buffer tank, Cu Ø35×1, DN32×G1½(a) flat, pipe spacing 100 mm<br/>1 integrated gravity brake/backflow preventer, Dp 10 mbar<br/>Generator circuit (HT-RLA) with ST DN25: Kvs = 5.7 &#x95; V'max[250 mbar] = 2.9 m³/h &#x95; Q'max[20 K] = 67 kW &#x95; Q'max[10K] = 34 kW &#x95; Leak rate < 0.1%<br/>5 thermometers 0–120°C, Ø63 mm, solder sleeves Ms58<br/>5 ball valve fittings, straight-through DN25, PN32, G1½(i)×Rp1 flat-seal, stuffing box, sealing hole, stem with aluminum wing handle

EPP insulation mold, 40 g/l, black, 300×450 mm, Quick-installation kit<br/>With pump flange G1½(i) for DN25 pump on the mixed heat generator return (5)

Assembly includes ONE pump compensator—PAS L180—with G1½(a)×G1½(i) threaded connections for compensating a DN25 pump, length 180 mm, insulated (Part No.: 001 338)<br/>Assembly does not include a pump<br/>Model DN 25—lightweight version, PN 10 bar, Tmax 120°C<br/>CAUTION: NOT TO BE USED WITHOUT SYSTEM ISOLATION!
