BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control Technology

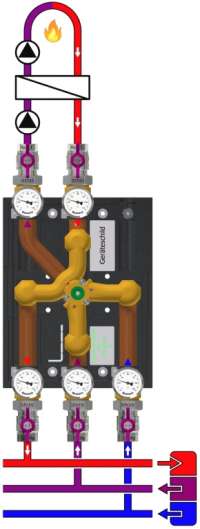

rendeMIX Multi-Port Mixing Manifold with 3/2-Way Tangential Mixing Valve DN25×G1½(a) Ms Cast Iron (green adapter), valve stem and cap Ms58

For highly efficient two-zone charging of a buffer storage tank by a heat generator with return temperature increase as a mixing circuit via highly efficient operation of a system separation using flow control

Actuator EMS 240, 230 V AC, 50 Hz, 3.5 VA, 3-point signal, 5 Nm (240 h), 240°, 93s<br/>Return temperature boost mixer assembly with 2 connections to the heat generator and 3 connections to the buffer tank, Cu Ø35×1, DN32×G1½(a) flat, pipe spacing 100 mm<br/>1 integrated gravity brake/backflow preventer, Dp 10 mbar<br/>Generator circuit (HT-RLA) for system separation to be provided by the customer: Kvs = 9.4 × V'max[250 mbar] = 4.7 m³/h × Q'max[20 K] = 109 kW × Q'max[10K] = 55 kW × Leak rate < 0.1%<br/>5 thermometers 0–120°C, Ø63 mm, solder sleeves Ms58<br/>5 ball valve fittings, straight-through DN25, PN32, G1½(i)×Rp1 flat-seal, stuffing box, sealing hole, stem with aluminum wing handle

Insulating molded shell, EPP 40 g/l, black, 300×450 mm, Quick-assembly kit<br/>Without pump flanges<br/>Assembly does NOT include a pump compensator – PAS L180 (Part No.: 001 338)<br/>Assembly does not include a pump<br/>Model DN 25 – lightweight version, PN 10 bar, Tmax 120°C<br/>CAUTION: NOT TO BE USED WITHOUT SYSTEM ISOLATION!
