Two-zone discharge
For highly efficient two-zone discharging of a buffer tank through a mixing circuit by means of highly efficient operation of a system separation via flow control
Specialist partner access required
Specialist partner access required
Specialist partner access required

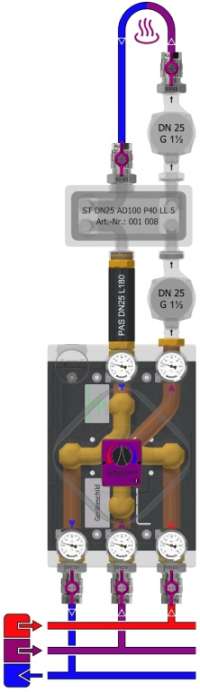

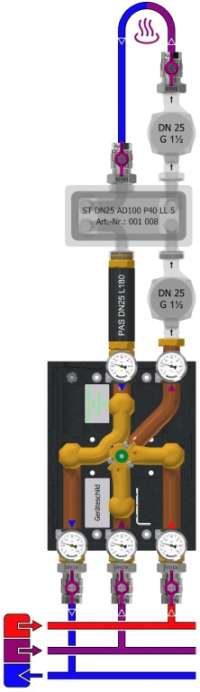

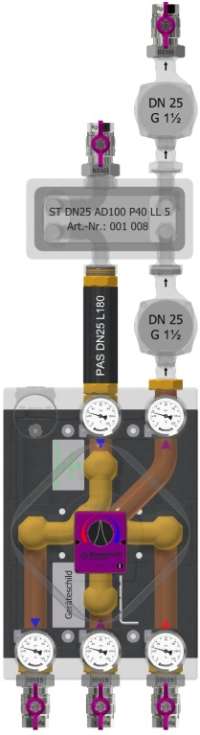

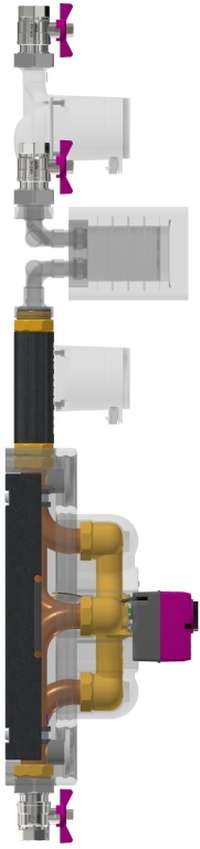

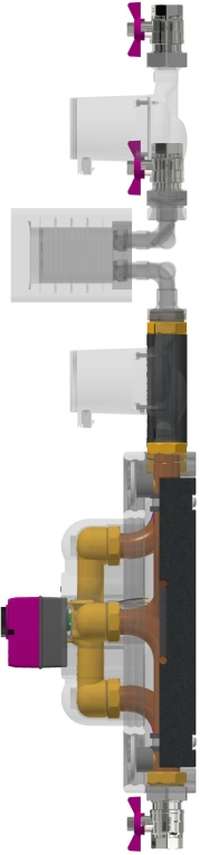

BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control TechnologyrendeMIX Multi-Port Mixing Manifold with 3/2-Way Tangential Mixing Valve DN25×G1½(a) MsGuss (green adapter), valve and cover Ms58For highly efficient two-zone discharge of a buffer tank via a mixing circuit through highly efficient operation of a system separation using flow controlActuator EMS 240, 230V~ 50Hz 3.5VA 3-point signal, 5Nm (240h), 240°, 93sSingle-circuit mixer assembly with 3 connections to the heat source, Cu Ø35×1, DN32×G1½(a) flat, pipe spacing 100 mm1 integrated gravity brake/backflow preventer, Dp 10 mbarMixing circuit (NT) with valve DN25: Kvs = 5.7 × V'max[100 mbar] = 1.8 m³/h × Q'max[20 K] = 42 kW × Q'max[10K] = 21 kW • Leak rate < 0.1%5 thermometers 0–120°C, Ø63 mm, solder sleeves Ms585 ball valve fittings, DN25, PN32, G1½(i)×Rp1 flat-seal, stuffing box, sealing hole, stem with aluminum wing handle

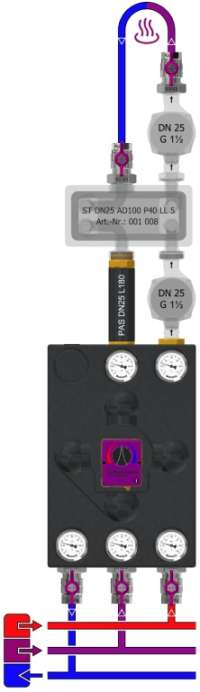

Insulating molded shell, EPP 40 g/l, black, 300×450 mm, Quick-installation kitWith pump flange G1½(i) for DN25 pump on the mixing circuit supply line (5)
Assembly includes ONE pump compensator—PAS L180—with G1½(a)×G1½(i) threaded connections for compensating a DN25 pump, length 180 mm, insulated (Part No.: 001 338)Assembly does not include a pumpModel DN 25—lightweight version, PN 10 bar, Tmax 120°CCAUTION: NOT TO BE USED WITHOUT SYSTEM ISOLATION!
Mixing circuit (NT) with ST DN25: Kvs = 5.7 • V'max[100mbar] = 1.8m³/h • Q'max[20K] = 42kW • Q'max[10K] = 21kW • Leakage rate < 0.1%
