Tender text

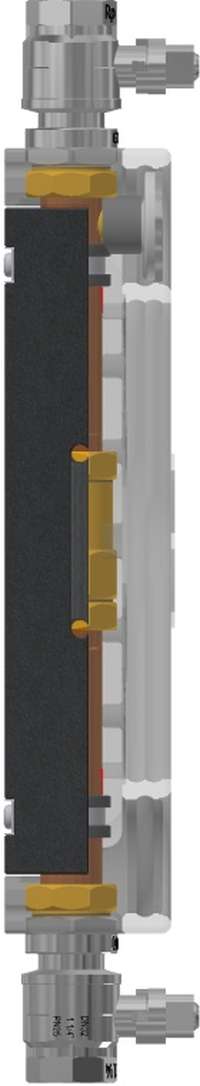

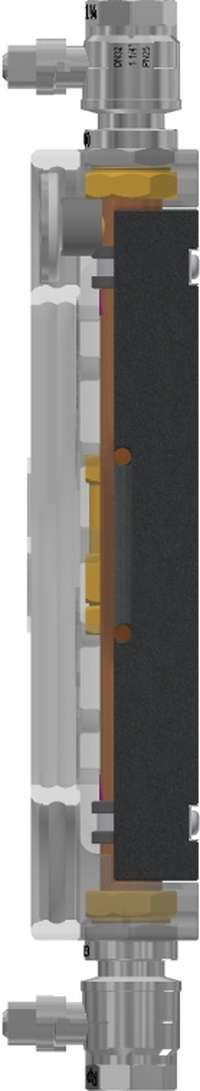

BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control TechnologyrendeMIX Closed Manifold Assembly Without Integrated Diverter

For connecting a heat generator in combination with a highly efficient rendeMIX heat distribution system (two- or three-chamber manifold)Without actuatorUnmixed supply assembly with 2 connections to the heat source, Cu Ø35×1, pipe spacing to heat consumers (manifold) 100 mm, pipe spacing to unmixed high-temperature heat generator 200 mm, DN32×G1½(a) flat1 integrated gravity check valve/backflow preventer, Dp 10 mbarGenerator circuit: Kvs = 22.6 • V'max[250 mbar] = 11.3 m³/h • Q'max[20 K] = 263 kW • Q'max[10K] = 131 kW2 thermometers 0–120°C, Ø63 mm, solder sleeves Ms584 ball valve fittings, straight-through DN32, PN25, G1½(i)×Rp1¼ flat-seal, stuffing box, stem with square drive SW25EPP insulation mold, 40 g/l, black, 300×450 mm, Quick-assembly kitWithout pump flangesAssembly does NOT include pump compensator – PAS L180 (Part No.: 001 338)Assembly does not include a pumpModel DN 32 – Manifold assembly for manifold connection from the RIGHT, PN 10 bar, Tmax 120°C

Performance data
