Tender text

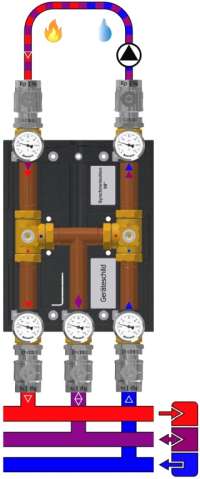

BAFA funding opportunity for heating system optimization through hydraulic balancing and the installation of separate control technologyrendeMIX double-switch valve consisting of two DN32×G1½(a) Ms58 3-way switching valves, valve body and cover Ms58For highly efficient two-zone charging of a buffer tank by a heat generator with minimum circulation in heating mode and during priority domestic hot water production (three-chamber manifold)

2 EMS 90-2P actuators, 230V~ 50Hz 2.3VA 2-point signal, 6Nm (240h), 90°, 60s, right-closing, gray adapter

Switching assembly with 3 connections to the buffer tank, Cu Ø35×1, pipe spacing to the heat generator 200 mm, pipe spacing to buffer tank 100 mm, DN32×G1½(a) flat1 integrated gravity brake/backflow preventer, Dp 10 mbarGenerator circuit (NT): Kvs = 10.4 • V'max[250 mbar] = 5.2 m³/h • Q'max[20 K] = 121 kW • Q'max[10 K] = 60 kW • Leak rate < 0.1%5 thermometers 0–120°C, Ø63 mm, solder sleeves Ms585 ball valve fittings, straight-through DN32, PN25, G1½(i)×Rp1¼ flat-seal, stuffing box, stem with square drive SW25Insulating molded shell EPP 40 g/l, black, 300×450 mm, Quick-assembly kitWithout pump flangesAssembly does NOT include pump compensator – PAS L180 (Part No.: 001 338)Assembly does not include a pumpModel DN 25 – Distributor assembly for distributor connection from the RIGHT, PN 10 bar, Tmax 120°C

Performance data
