Tender text

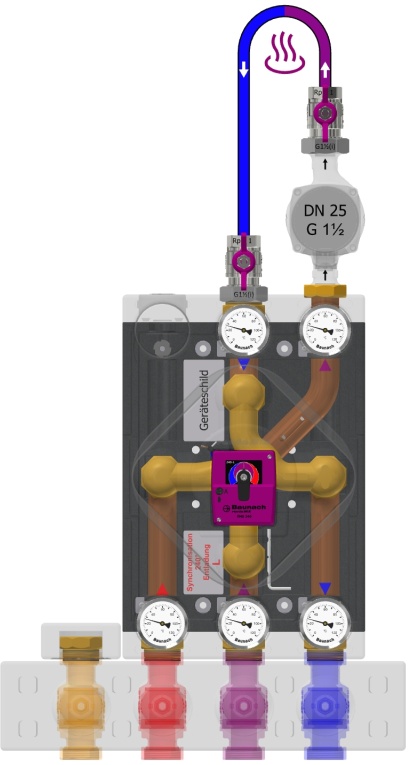

BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control Technology<br/>rendeMIX Multi-Port Mixing Manifold with 3/3-Way Tangential Mixing Valve DN25×G1½(a) MsGuss (red adapter), valve and cover Ms58<br/>For highly efficient two-zone discharge of an rSTOR C buffer tank via a mixing circuit; connection ABOVE a ball valve connection set<br/>Actuator EMS 240, 230V~ 50Hz 3.5VA 3-point signal, 5Nm (240h), 240°, 93s<br/>Single-circuit mixer assembly with 3 connections to the heat source, Cu Ø35×1, DN32×G1½(a) flat, pipe spacing 100 mm<br/>1 integrated gravity brake/backflow preventer, Dp 10 mbar<br/>Mixing circuit (NT): Kvs = 6.2 &#x95; V'max[100 mbar] = 2 m³/h &#x95; Q'max[20 K] = 47 kW &#x95; Q'max[10K] = 23 kW &#x95; Leak rate < 0.1%<br/>5 thermometers 0–120°C, Ø63 mm, solder sleeves Ms58<br/>2 ball valve fittings, straight-through DN25, PN32, G1½(i)×Rp1 flat-seal, stuffing box, sealing hole, spindle with aluminum wing handle

Insulating molded shell, EPP 40 g/l, black, 300×450 mm, Quick-installation kit<br/>With G1½(i) pump flange for DN25 pump on the mixing circuit supply line (5)<br/>Assembly does NOT include pump compensator – PAS L180 (Part No.: 001 338)<br/>With blind fitting consisting of a G1½ brass union nut, stainless steel washer, and insulating cap<br/>Model DN 25 – lightweight version, PN 10 bar, Tmax 120°C

Performance data
