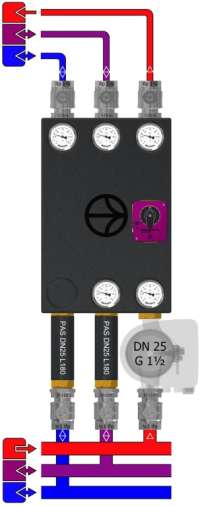

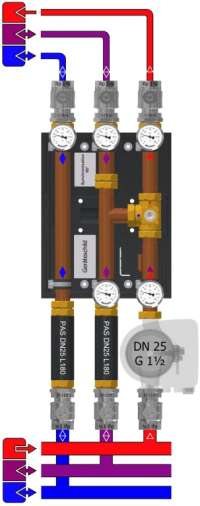

BAFA funding opportunity for heating system optimization through hydraulic balancing and the installation of separate control technology<br/>rendeMIX changeover valve with a 3-way changeover valve DN32×G1½(a) Ms58, spindle and cover Ms58<br/>For highly efficient two-zone charging of a buffer tank with priority domestic hot water production via a heat generator with minimum temperature release and water volume balancing (hydraulic diverter) via the buffer tank’s low-temperature circuit to the three-chamber manifold<br/>Actuator EMS 90-2P, 230 V~ 50 Hz 2.3 VA 2-point signal, 6 Nm (240h), 90°, 60s, right-closing, gray adapter<br/>Switching assembly with 3 connections to the manifold and 3 connections to the buffer tank, Cu Ø35×1, pipe spacing to the manifold 100 mm, pipe spacing to buffer tank 100 mm, DN32×G1½(a) flat<br/>1 integrated check valve, Dp 10 mbar, and 1 integrated return differential pressure regulator, Dp 50–70 mbar<br/>Generator circuit (HT): Kvs = 13.6 × V'max[250 mbar] = 6.8 m³/h &#x95; Q'max[20 K] = 158 kW &#x95; Q'max[10 K] = 79 kW &#x95; Leak rate < 0.1%<br/>5 thermometers 0–120°C, Ø63 mm, solder sleeves Ms58<br/>6 ball valve fittings, DN32, PN25, G1½(i)×Rp1¼ flat-seal, stuffing box, stem with square drive SW25<br/>EPP insulation mold, 40 g/l, black, 300×450 mm, Quick-installation kit<br/>With pump flange G1½(i) for a DN25 pump on the heat generator supply line of the manifold (1)

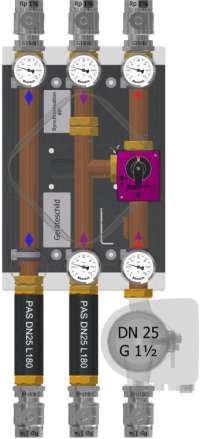

Assembly includes TWO pump compensators—PAS L180—with G1½(a)×G1½(i) screw connections to compensate for a DN25 pump, length 180 mm, insulated (Part No.: 001 338)<br/>Assembly does not include a pump<br/>Model DN 25 – manifold assembly for manifold connection from the LEFT, PN 10 bar, Tmax 120°C
