Tender text

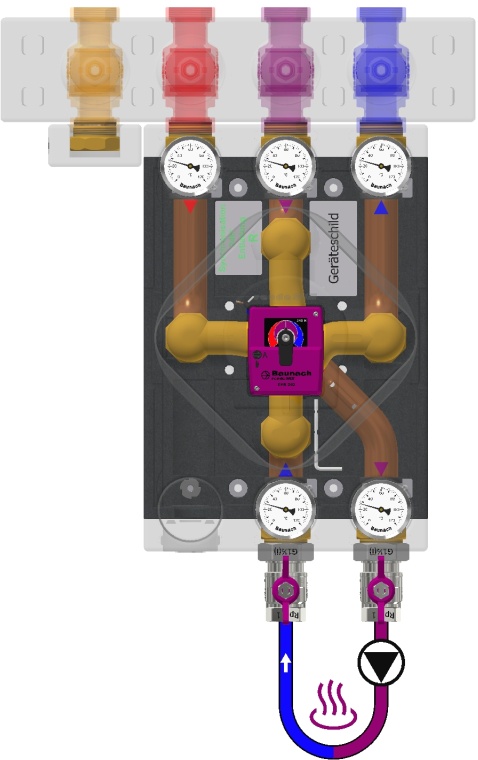

BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control TechnologyrendeMIX Multi-Port Mixing Manifold with 3/3-Way Tangential Mixing Valve DN25×G1½(a) MsGuss (green adapter), valve and cover Ms58For highly efficient two-zone discharge of an rSTOR C buffer storage tank via a mixing circuit, connection BELOW a ball valve connection setActuator EMS 240, 230V~ 50Hz 3.5VA 3-point signal, 5Nm (240h), 240°, 93sSingle-circuit mixer assembly with 3 connections to the heat source, Cu Ø35×1, DN32×G1½(a) flat, pipe spacing 100 mm1 integrated gravity brake/backflow preventer, Dp 10 mbarMixing circuit (NT): Kvs = 6.2 • V'max[100 mbar] = 2 m³/h • Q'max[20 K] = 47 kW • Q'max[10K] = 23 kW • Leak rate < 0.1%5 thermometers 0–120°C, Ø63 mm, solder sleeves Ms582 ball valve fittings, straight-through DN25, PN32, G1½(i)×Rp1 flat-seal, stuffing box, sealing hole, spindle with aluminum wing handle

Insulating molded shell EPP 40 g/l, black, 300×450 mm, Quick-assembly kitWithout pump flangesAssembly does NOT include pump compensator – PAS L180 (Part No.: 001 338)With blind fitting consisting of a G1½ brass union nut, stainless steel washer, and insulating capModel DN 25 – lightweight version, PN 10 bar, Tmax 120°C

Performance data
