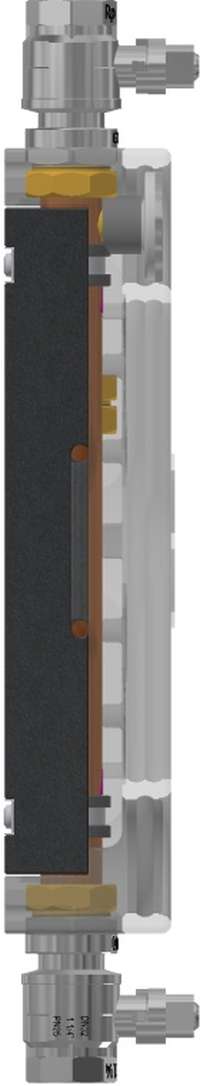

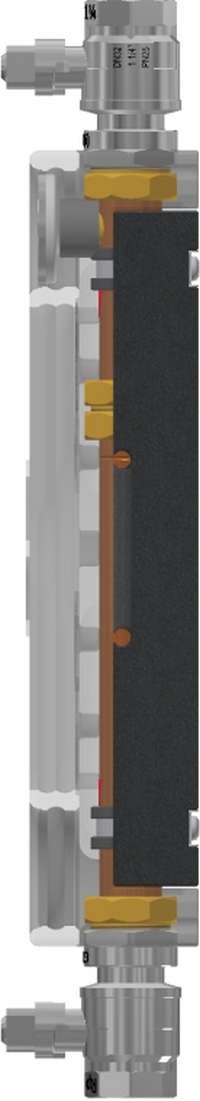

BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control Technology<br/>rendeMIX Closed Manifold Assembly Without Integrated Diverter

For connecting a heat generator in combination with a highly efficient rendeMIX heat distribution system (two- or three-chamber manifold)<br/>Without actuator<br/>Unmixed supply assembly with 2 connections to the heat source, Cu Ø35×1, pipe spacing to heat consumers (manifold) 100 mm, pipe spacing to unmixed high-temperature heat generator 200 mm, DN32×G1½(a) flat<br/>1 integrated gravity brake/backflow preventer, Dp 10 mbar<br/>Generator circuit: Kvs = 19.9 &#x95; V'max[250 mbar] = 10 m³/h &#x95; Q'max[20 K] = 233 kW &#x95; Q'max[10K] = 116 kW<br/>2 thermometers 0–120°C, Ø63 mm, solder fittings Ms58<br/>4 ball valve fittings, straight-through DN32, PN25, G1½(i)×Rp1¼ flat-seal, stuffing box, stem with square drive SW25<br/>EPP insulation mold 40 g/l, black, 300×450 mm, Quick-assembly kit<br/>Without pump flanges<br/>Assembly does NOT include pump compensator – PAS L180 (Part No.: 001 338)<br/>Assembly does not include a pump<br/>Model DN 25 – Manifold assembly for manifold connection from the LEFT, PN 10 bar, Tmax 120°C

Performance data
