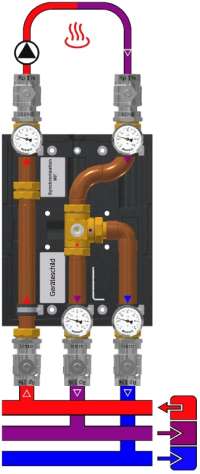

BAFA funding opportunity for heating system optimization through hydraulic balancing and the installation of separate control technologyrendeMIX switching valve with a 3-way switching valve DN32×G1½(a) Ms58, valve body and cover Ms58For highly efficient supply of a hot water (HT) heating circuit via two-zone discharge from a buffer tank with year-round HT operation and weather-compensated low-temperature (NT) operation through automatic returnswitching from the upper to the lower buffer zone during high-temperature operation onlyActuator EMS 90-2P, 230V~ 50Hz 2.3VA 2-point signal, 6Nm (240h), 90°, 60s, right-closing, gray adapterSwitching assembly with 3 connections to the manifold and 2 connections to the high-temperature heating circuit, Cu Ø35×1, pipe spacing to the manifold 100 mm, pipe spacing to the HT heating circuit 200 mm, DN32×G1½(a) flat1 integrated gravity check valve/backflow preventer, Dp 10 mbarHeating circuit (HT): Kvs = 13.6 • V'max[100 mbar] = 4.3 m³/h • Q'max[20 K] = 100 kW • Q'max[10 K] = 50 kW • Leak rate < 0.1%4 Thermometers 0–120°C, Ø63mm, solder sleeves Ms585 Ball valve fittings, straight-through DN32, PN25, G1½(i)×Rp1¼ flat-seal, stuffing box, stem with square drive SW25Insulating molded shell EPP 40 g/l, black, 300×450 mm, Quick-assembly kitWithout pump flangesAssembly does NOT include pump compensator – PAS L180 (Part No.: 001 338)Assembly does not include a pumpModel DN 25 – Manifold assembly for manifold connection from the RIGHT, PN 10 bar, Tmax 120°C
