Tender text

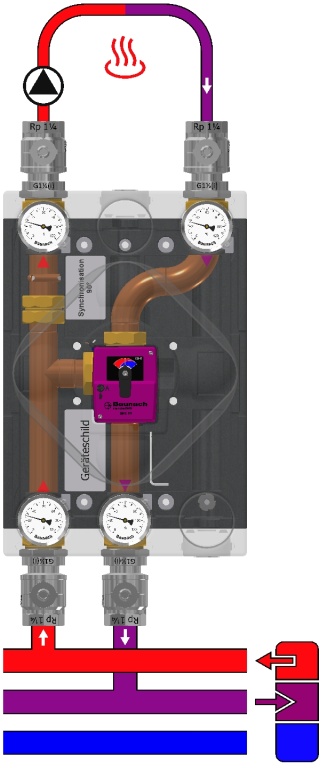

BAFA funding opportunity for heating system optimization through hydraulic balancing and the installation of separate control technology<br/>rendeMIX 3-way mixing valve DN32×G1½(a) Ms58, Küken and cover Ms58<br/>For controlling a mixed high-temperature circuit whose return flow is utilized highly efficiently by a rendeMIX heat distribution system (two- or three-chamber manifold)<br/>Actuator EMS 90-3P, 230V~ 50Hz 3.5VA 3-point signal, 5Nm (240h), 90°, 70s, gray adapter<br/>Mixer assembly with 2 connections to the heat source, Cu Ø35×1, pipe spacing to the heat source 100 mm, pipe spacing to the mixing circuit 200 mm, DN32×G1½(a) flat<br/>1 integrated gravity brake/backflow preventer, Dp 10 mbar<br/>Mixing circuit (HT): Kvs = 13.6 &#x95; V'max[100 mbar] = 4.3 m³/h &#x95; Q'max[20 K] = 100 kW &#x95; Q'max[10 K] = 50 kW &#x95; Leak rate < 0.1%<br/>2 thermometers 0–120°C, Ø63mm, solder sleeves Ms58<br/>4 ball valve fittings, straight-through DN32, PN25, G1½(i)×Rp1¼ flat-seal, stuffing box, stem with square drive SW25<br/>EPP insulation mold, 40 g/l, black, 300×450 mm, Quick-assembly kit<br/>Without pump flanges<br/>Assembly does NOT include pump compensator – PAS L180 (Part No.: 001 338)<br/>Assembly does not include a pump<br/>Model DN 25 – Distributor assembly for distributor connection from the RIGHT, PN 10 bar, Tmax 120°C

Performance data
