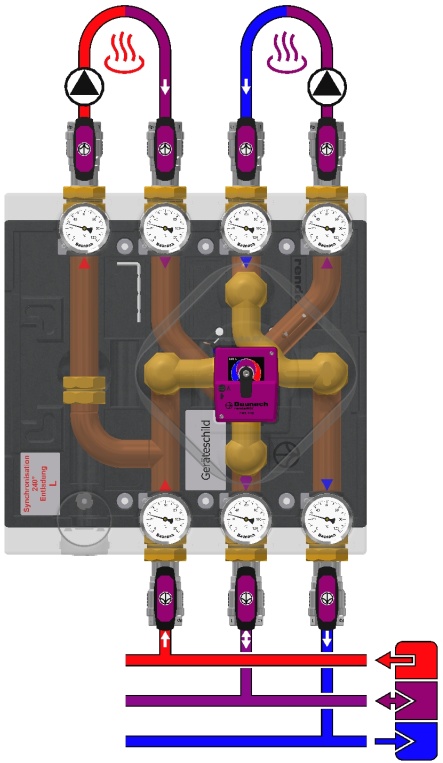

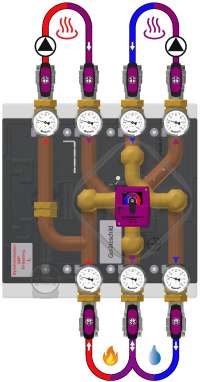

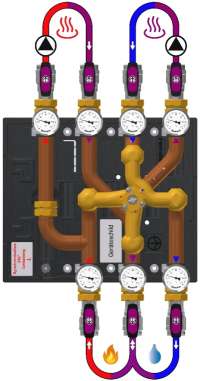

rendeMIX Multi-Port Mixing Manifold with 3/3-Way Tangential Mixing Valve DN25×G1½(a) Ms Cast Iron (red adapter), valve and cover Ms58

For highly efficient two-zone discharge of a buffer tank in a mixed low-temperature circuit while making highly efficient use of the return flow from an unmixed high-temperature circuitEMS 240 actuator, 230 V AC, 50 Hz, 3.5 VA, 3-point signal, 5 Nm (240 h), 240°, 93sTwo-circuit manifold assembly with 3 connections to the heat generator (buffer tank or boiler with flue gas heat exchanger), Cu Ø35×1, pipe spacing 100 mm, DN32×G1½(a) flat3 integrated gravity brakes/backflow preventers, Dp 10 mbarDirect heating circuit (HT): Kvs = 11.9 • V'max[100 mbar] = 3.8 m³/h • Q'max[20 K] = 88 kW - Mixing circuit (NT): Kvs = 12.9 • V'max[100 mbar] = 4.1 m³/h • Q'max[10 K] = 48 kW • Leak rate < 0.1%7 thermometers 0–120°C, Ø63 mm, solder sleeves Ms587 ball valve fittings, straight-through DN25s, PN20, G1½(i)×Rp1 flat-seal, stuffing box, stem with nylon T-handleEPP insulation mold, 40 g/l, black, 450×450 mm, Quick-assembly kitWithout pump flangesAssembly does NOT include a pump compensator – PAS L180 (Part No.: 001 338)Assembly does not include a pumpModel DN 25 – heavy-duty version, PN 10 bar, Tmax 120°C
