BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control Technology

rendeMIX Changeover Valve with a 3-Way Changeover Valve DN32×G1½(a) Ms58, spindle and cap Ms58

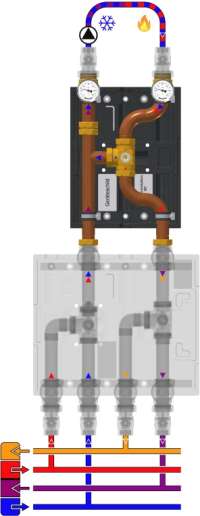

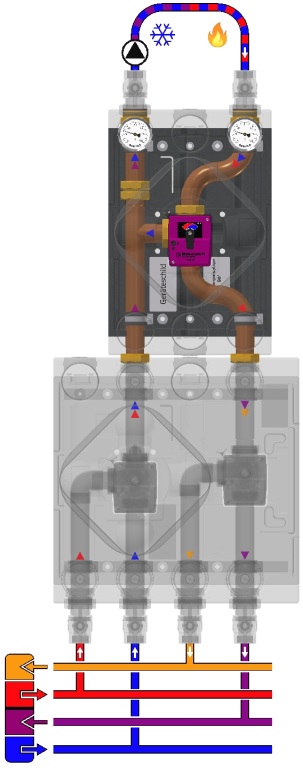

TWIN assembly for expanding a rendeMIX DUVbox 2x3 or 2x4 to drain a defrost buffer located in the return line of a heat pump by switching the heat pump’s supply line to its own return line

EMS 90-2P actuator, 230V~ 50Hz 2.3VA 2-point signal, 6Nm (240h), 90°, 60s, right-closing, gray adapter<br/>Single-circuit generator assembly with 2 connections to the heat source DN32×G1½(a) flat and 2 connections to the heat sink (DUVbox) DN32×G1½(i) flat, CuØ35×1, pipe spacing 200 mm<br/>without integrated gravity brake/backflow preventer<br/>Generator circuit: Kvs = 14.3 &#x95; V'max[250 mbar] = 7.1 m³/h &#x95; Q'max[20 K] = 165 kW &#x95; Q'max[10K] = 83 kW &#x95; Leak rate < 0.1%<br/>2 thermometers 0–120°C, Ø63 mm, Solder sleeves Ms58<br/>Without ball valve fitting<br/>Insulating molded shell EPP 40 g/l, black, 300×450 mm, Quick-assembly kit<br/>Without pump flanges<br/>Assembly does NOT include a pump compensator – PAS L180 (Part No.: 001 338)<br/>Assembly does not include a pump<br/>Model DN 25 – lightweight version, PN 10 bar, Tmax 120°C<br/>CAUTION: CANNOT BE USED WITHOUT A DUVbox!

Performance data
