Tender text

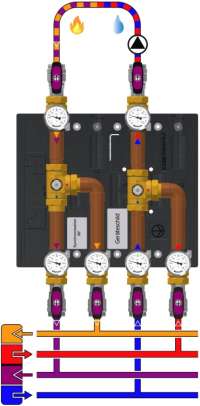

BAFA funding opportunity for heating system optimization through hydraulic balancing and the installation of separate control technologyrendeMIX double-switch valve consisting of two DN32×G1½(a) Ms58 3-way switching valves, valve body and cover Ms58For highly efficient two-zone charging of a buffer tank by a heat generator with minimum circulation in heating mode and during priority domestic hot water production2 EMS 90-2P actuators, 230 V AC, 50 Hz, 2.3 VA, 2-point signal, 6 Nm (240 h), 90°, 60s, left-closing, gray adapterSwitching assembly with 4 connections to the buffer tank, Cu Ø35×1, pipe spacing to the heat generator 200 mm, Pipe spacing to buffer tank 100 mm, DN32×G1½(a) flat1 integrated gravity brake/backflow preventer, Dp 10 mbarGenerator circuit (NT): Kvs = 10.1 × V'max[250 mbar] = 5.1 m³/h × Q'max[20 K] = 119 kW × Q'max[10K] = 59 kW • Leak rate < 0.1%6 thermometers 0–120°C, Ø63 mm, solder sleeves Ms586 ball valve fittings, straight-through DN25, PN32, G1½(i)×Rp1 flat-seal, stuffing box, sealing hole, stem with aluminum wing handle

EPP insulation shell, 40 g/l, black, 450×450 mm, Quick-assembly kitWithout pump flangesAssembly does NOT include pump compensator – PAS L180 (Part No.: 001 338)Assembly does not include a pumpModel DN 25 – heavy-duty version, PN 10 bar, Tmax 120°C

Performance data
