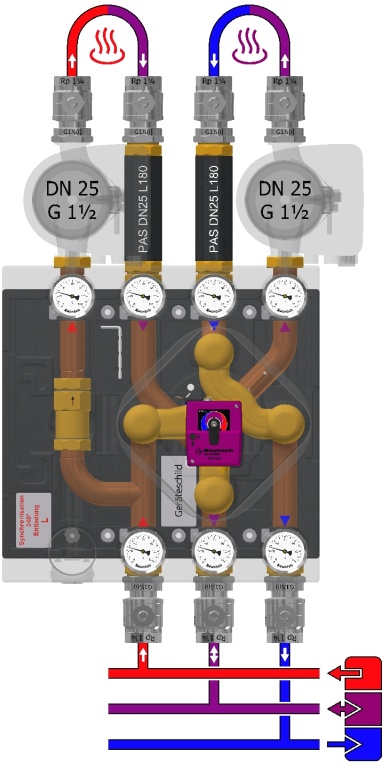

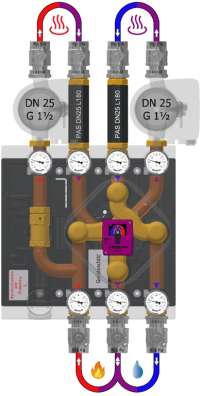

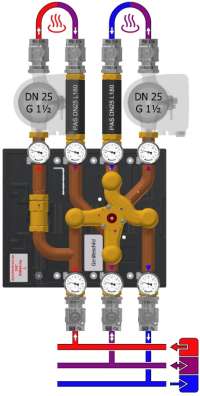

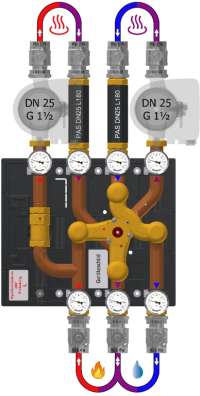

rendeMIX Multi-Port Mixing Manifold with 3/3-Way Tangential Mixing Valve DN32×G1½(a) Ms Cast Iron (red adapter), valve stem and cap Ms58

For highly efficient two-zone discharge of a buffer tank in a mixed low-temperature circuit with highly efficient utilization of the return flow from an unmixed high-temperature circuit<br/>Actuator EMS 240, 230 V AC, 50 Hz, 3.5 VA, 3-point signal, 5 Nm (240 h), 240°, 93s<br/>Two-circuit manifold assembly with 3 connections to the heat generator (buffer tank or boiler with flue gas heat exchanger), Cu Ø35×1, pipe spacing 100 mm, DN32×G1½(a) flat<br/>3 integrated gravity brakes/backflow preventers, Dp 10 mbar<br/>Direct heating circuit (HT): Kvs = 15.8 &#x95; V'max[100 mbar] = 5 m³/h &#x95; Q'max[20 K] = 116 kW - Mixing circuit (NT): Kvs = 18.9 &#x95; V'max[100 mbar] = 6 m³/h &#x95; Q'max[10 K] = 70 kW &#x95; Leak rate < 0.1%<br/>7 thermometers 0–120°C, Ø63 mm, solder sleeves Ms58<br/>7 ball valve fittings, straight-through DN32, PN25, G1½(i)×Rp1¼ flat-seal, stuffing box, stem with square drive SW25<br/>EPP insulation mold, 40 g/l, black, 450×450 mm, Quick-installation kit<br/>With G1½(i) pump flanges for DN25 pumps on the unmixed heating (3) and mixing circuit supply (5)

Assembly includes TWO pump compensators—PAS L180—with G1½(a)×G1½(i) threaded connections to compensate for a DN25 pump, length 180 mm, insulated (Part No.: 001 338)<br/>Assembly does not include a pump<br/>Model DN 32, PN 10 bar, Tmax 120°C
