Tender text

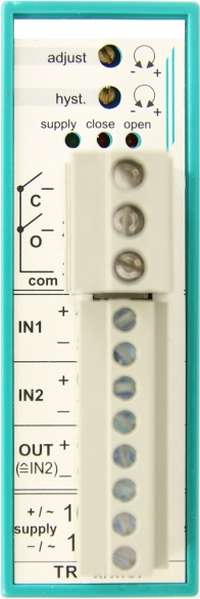

BAFA Funding Opportunity for Heating System Optimization Through Hydraulic Balancing and Installation of Separate Control Technology<br/>Electrical Signal Converter 0-10V -> 3-Point Signal 230V AC

For actuators with a 70-second runtime (e.g., EMS 90 3P)<br/>Terminal 01: Actuator CLOSED<br/>Terminal 02: Actuator OPEN<br/>Terminal 03: Actuator supply voltage<br/>Load on the normally open contacts: max. 250 V AC, max. 6 A<br/>Terminals 04/05: Input signal 0–10 V (Ri: 1 MΩ)<br/>Terminals 10/11: Supply voltage 10..40 V DC or 9..30 V AC

Power consumption: max. 1 W

Operating temperature: -10..+50°C, storage temperature: -30..+80°C<br/>TS35 snap-on plastic enclosure per EN50022 (top-hat rail)<br/>Dimensions: 24×72×94 mm (W×H×D), Weight: 106 g<br/>------------------------------------------------------------------------<br/>Ordering information: Fixed factory setting, Input 1 = 0..10V, runtime = 70s
